Big conveying capacity, simple structure, convenient repair and standard parts, and the density of material is less than 2.5t/m³.
Processing ability
78–2195 t/h
Belt width
500–1600 mm
More than 200
kinds of materials

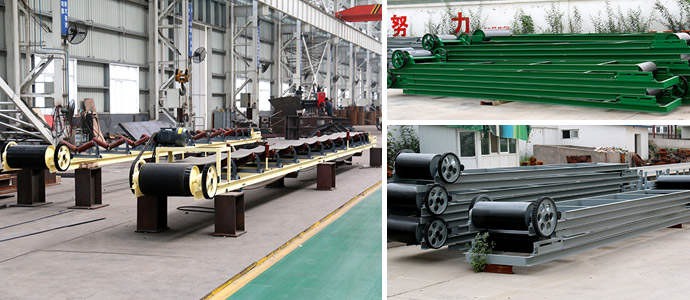

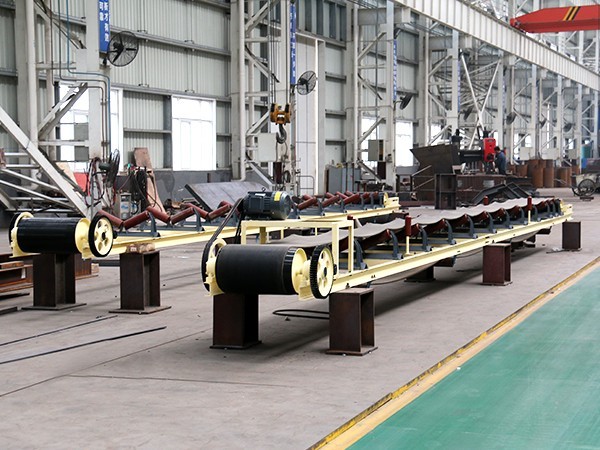

Belt conveyor manufactured by our company has the advantages of big conveying capacity, simple structure, convenient repair and standard parts, so it is widely used in the industries of mine, metallurgy and coal to convey loose materials and finished products. According to different technique requirements, the machine can convey materials singly or be formed conveying system with other conveying equipment to meet different requirements of working line.
1. the conveying quantity is worked out by the following conditions: material density is between 1.0t/m³--1.6t/m³, and conveyor obliquity is less than 18°and the material stockpile angle is 30°.
2. Density of material is less than 2.5t/m³.
3. The conveying length is not restricted to the form, and different length can be manufactured according to customers' demands.
| Belt width(mm) | Conveying length(m) Power(kw) |
Conveying speed(m/s) | Conveying amount(t/h) | ||
| 400 | ≤10 3 |
12-15 3-4 |
15-30 4-7.5 |
1.25-2.0 | 30-60 |
| 500 | ≤10 3 |
12-15 4-5.5 |
15-30 5.5-7.5 |
1.25-2.0 | 40-80 |
| 650 | ≤10 4 |
12-15 7.5 |
15-30 7.5-11 |
1.25-2.0 | 80-120 |
| 800 | ≤10 4 |
12-15 7.5 |
15-30 7.5-15 |
1.25-2.0 | 120-200 |
| 1000 | ≤10 5.5 |
10-20 7.5-11 |
20-40 11-22 |
1.25-2.0 | 200-320 |
| 1200 | ≤10 7.5 |
10-20 7.5-15 |
20-40 15-30 |
1.25-2.0 | 290-480 |
| 1400 | ≤10 11 |
10-20 15-22 |
＜20-40 22-45 |
1.25-2.0 | 400-680 |
| 1600 | ≤10 15 |
10-20 22-30 |
＜20-50 30-75 |
1.25-2.0 | 600-1080 |
| 1800 | ≤10 18.5 |
10-20 30-45 |
＜20-50 45-110 |
1.0-2.0 | 200-1500 |
| 2000 | ≤10 22 |
10-20 45-55 |
＜20-40 55-132 |
1.0-2.0 | 1000-2000 |
| 2400 | ≤10 30 |
10-20 55-75 |
＜20-40 75-185 |
1.0-2.0 | 1500-3000 |
