Home / Products / Crushing Equipment / Tertiary Crusher

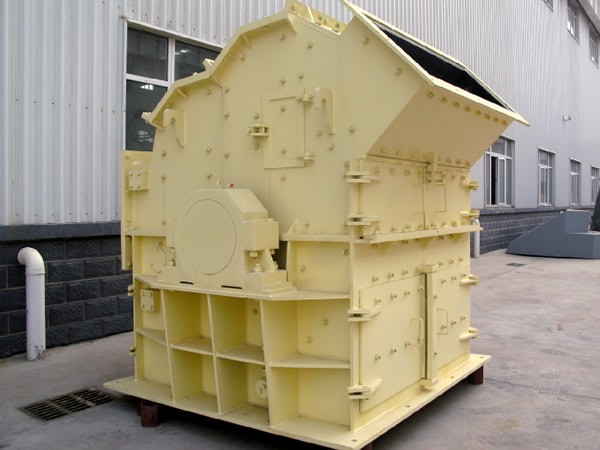

Tertiary Crusher

Tertiary Crusher

Higher tertiary-crushing efficiency, higher rotating ratio and lower power consumption, long lifespan of those wearing parts.

  • Processing capacity
    12-1000t/h

  • Discharge opening
    3-60mm

  • More than 200
    kinds of materials

Applied material: barite, marble, talcum, calcite, dolomite, fluorite, kaoline, coal, gypsum.

Send e-mail sell@hxjq.com

Some Common Knowledge of Tertiary Crusher

The application of tertiary crusher is wider, whose performance characteristics have reached the international advanced level, so it is the most effective stone crushing equipment, and this machine especially is being used for the tertiary and medium crushing process in some fields such as cement, refractory, quartz, which is one high efficiency and energy saving sand making equipment because it can save 50% power by comparing with those traditional crushers.

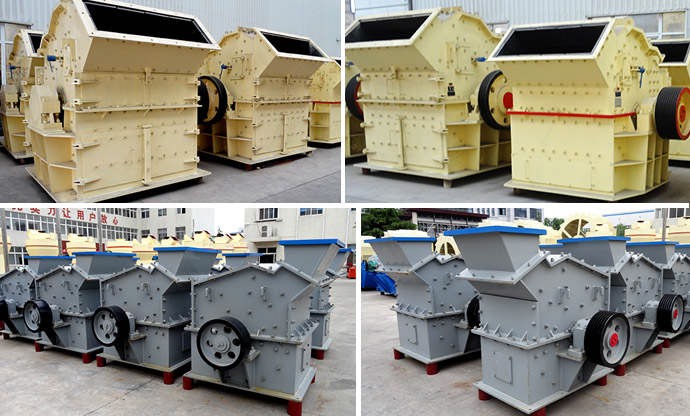

tertiary_crusher

The Significant Advantages of Tertiary Crusher

1. higher tertiary-crushing efficiency.
Taking the design of the grate plate and the rigid steel-extrusion crushing can improve the ratio of tertiary-crushing.

2. higher rotating ratio and lower power consumption.
High speed and fast operation can greatly lower the power consumption by comparing with the traditional millers.

3. long lifespan of those wearing parts.

Technical Parameter

PXJ tertiary impact crusher
Rotorø×Width
(mm)
Rotorø×Width
(mm)
Rotorø×Width
(mm)
Rotorø×Width
(mm)
Rotorø×Width
(mm)
Rotorø×Width
(mm)
Rotorø×Width
(mm)
Rotorø×Width
(mm)
Specification
800×400
800×600
800×800
1010×1010
1200
×1200
1400
×1400
1600
×1600
1800
×1800
Feed opening size(mm)
400×185
500×250
550×300
1000×350
1200
×450
1500
×500
1600
×550
1800
×800
Feeding size (mm)
<120
<180
<180
<180
<180
<190
<190
<190
Discharging size (mm)
0-10
0-10
0-10
0-10
0-10
0-10
0-10
0-10
Adjustable range of discharge opening (mm)
5-50
5-50
5-50
5-50
5-50
5-50
5-50
5-50
Cement Clinker(t/h)
10-30
1040
20-45
25-55
35-90
50-150
85-210
125-270
Limestone(t/h)
18-45
23-55
28-65
35-75
45-110
50-150
95-260
140-310
Power(kw)
4P   37
4P   45
4P   45
4P   55
6P   110
6P   160
4P   250
4P   315
