Low capital cost solutions, outstanding performance, good cubical shape, lowest operation cost per ton, and wide materials applications.
Processing capacity
30-800t/h
Feeding size
300-700mm
More than 200
kinds of materials

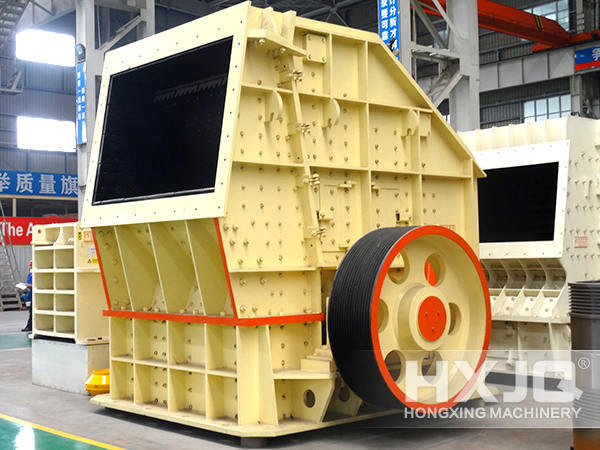

HD series impact crushers are the latest development crusher based on zenith's more than 20 years experience and leading technology in PF series impact crushers have the features of heavy duty rotor design, unique hammer system, interchangeable wearing parts, and easy maintenance. This series impact crushers provide customers low capital cost solutions, outstanding performance, good cubical shape, lowest operation cost per ton, and wide materials applications.
1. Heavy rotor design and unique blow bar fixing system.
2. Reliable overload and tramp iron protection device. 3. Adding grinding cavity design(optional), wider application. 4. optimized crushing chamber, higher capacity. 5. Bigger feed opening design, bigger materials crushed. 6. Easy to maintain, high reliability and safety.| Model | Rotor（mm） | The Maximum Feeding Size（mm） | Capacity（t/h） | Motor power（kw） | Overall dimension（L×W×H）(mm) | Weight（kg） | |
| -150MPa | -350MPa | ||||||
| HD1110 | Φ1040×1000 | 400 | 200 | 90~190 | 4P 90-132 | 3000×2360×2385 | 15875 |
| HD1315 | Φ1300×1500 | 700 | 300 | 180~280 | 4P 200-270 | 3735×3156×3055 | 29600 |
| HD1520 | Φ1500×2000 | 1000 | 400 | 350~500 | 4P 400-500 | 4310×3330×3660 | 42000 |
| HD1625 | Φ1650×2500 | 1300 | 500 | 500~670 | 4P 500-670 | 5540×4330×4600 | 66000 |
